Diesel Cast Iron Pump
HAILIN diesel high pressure pumps are powered by reliabe, strong-built air cooled diesel engines. Suitable for various applications like dewatering, agricultral, pool water removal, irrigation, etc. High quality aluminum pump housing and cast iron impeller extends the life of the pump. Carbon-ceramic mechanical seal designed for long and superior abrasion resistance. Self-priming design (Require initial priming to operate).
| HL50HC | HL50HCL | HL80HC | HL80HCL |
| 5.5L Fuel Tank | 5.5L Fuel Tank | 5.5L Fuel Tank | 12.5L Fuel Tank |
Request for a quotation!
Contact us for a free quotation or request additional information.

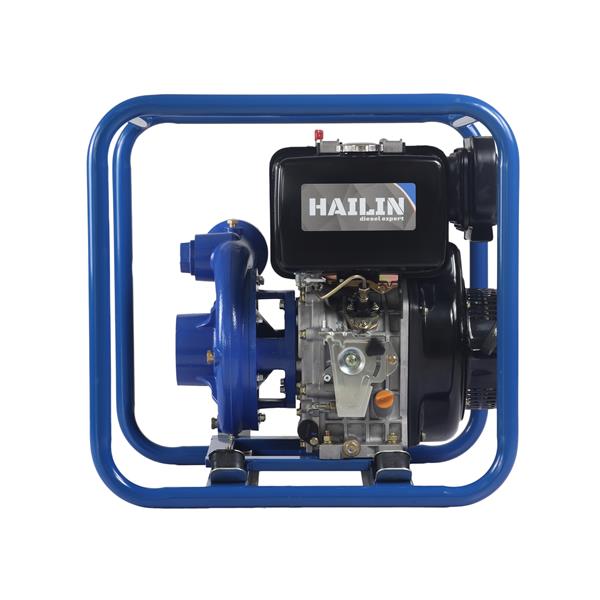

| Model | HL50HC |
| Fuel Tank | 5.5 L |
| Start System | Manual Start |
| Type | Self-priming (initial priming needed), centrifugal pump |
| Inlet | 2" (50mm) |
| Outlet | 2" (50mm) |
| Total Head | 70 m |
| Suction Head | 6 m |
| Discharge Volume | 400 L/min |
| Pump Body | Cast Iron |
| Impeller | Cast Iron |
| Mechanical Seal | Carbon-Ceramic |
| Engine Type | Forced air cooled, 4-stroke diesel engine |
| Engine Model | HL186FA |
| Displacement | 418 cc |
| Rated Output | 6.3kW (8.6hp) @3600rpm |
| Fuel Consumption Rate | 318ml/kW.h @3600rpm |
| Dry Weight | 67.5 kg |
| Dimension | 590x485x570 mm |

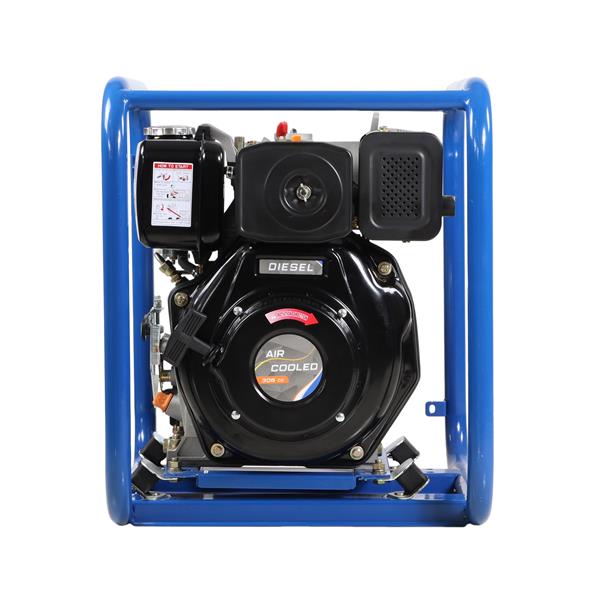

| Model | HL80HC |
| Fuel Tank | 5.5 L |
| Start System | Manual Start |
| Type | Self-priming (initial priming needed), centrifugal pump |
| Inlet | 3" (80mm) |
| Outlet | 3" (80mm) |
| Total Head | 65 m |
| Suction Head | 6 m |
| Discharge Volume | 600 L/min |
| Pump Body | Cast Iron |
| Impeller | Cast Iron |
| Mechanical Seal | Carbon-Ceramic |
| Engine Type | Forced air cooled, 4-stroke diesel engine |
| Engine Model | HL188FV |
| Displacement | 474 cc |
| Rated Output | 7.5kW (10.2hp) @3600rpm |
| Fuel Consumption Rate | 335ml/kW.h @3600rpm |
| Dry Weight | 80 kg |
| Dimension | 590x485x570 mm |
