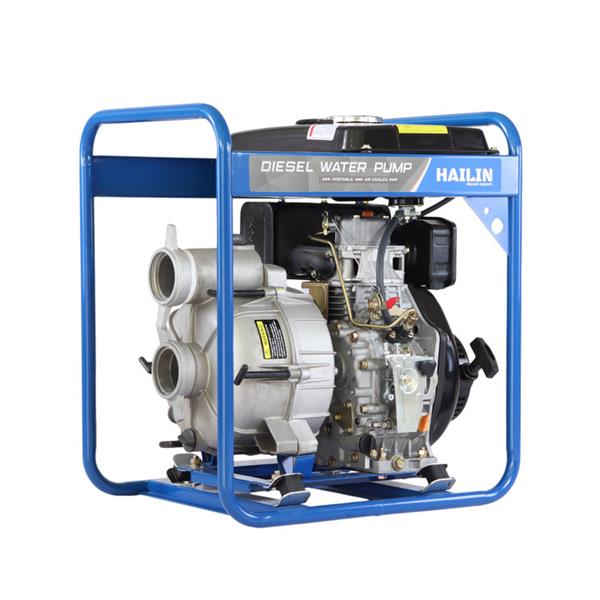

Diesel Semi-Trash Pump HL80TPL

HAILIN diesel semi-trash pumps are powered by reliabe, strong-built air cooled diesel engines. Suitable for various applications like dewatering, agricultral, etc. High quality aluminum pump housing and cast iron impeller extends the life of the pump. Carbon-ceramic mechanical seal designed for long and superior abrasion resistance. Self-priming design (Require initial priming to operate).

Request for a quotation!

Contact us for a free quotation or request additional information.

Get a quote
ModelHL80TPL
Fuel Tank12.5 L
Start SystemManual Start
TypeSelf-priming (initial priming needed), centrifugal pump
Inlet3" (80mm)
Outlet3" (80mm)
Total Head27 m
Suction Head6 m
Discharge Volume1000 L/min
Solid Handling27 mm
Pump BodyAluminium Alloy
ImpellerCast Iron
Mechanical SealCarbon-Ceramic
Engine TypeForced air cooled, 4-stroke diesel engine
Engine ModelHL178FA
Displacement306 cc
Rated Output4.0kW (5.5hp) @3600rpm
Fuel Consumption Rate335ml/kW.h @3600rpm
Dry Weight59 kg
Dimension635x475x635 mm
