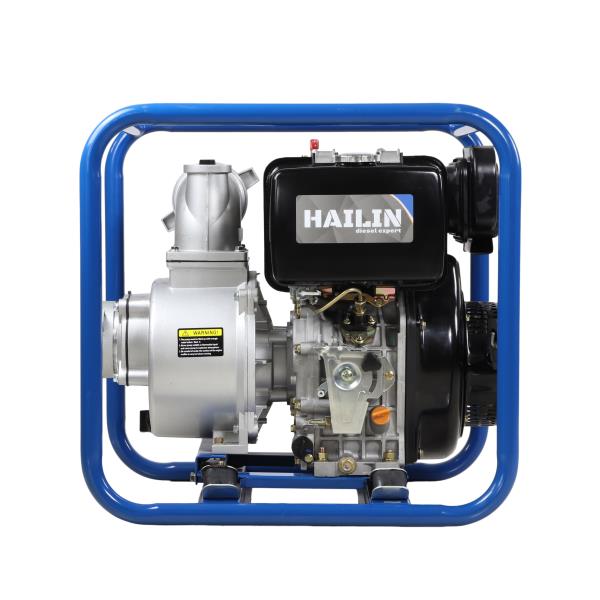

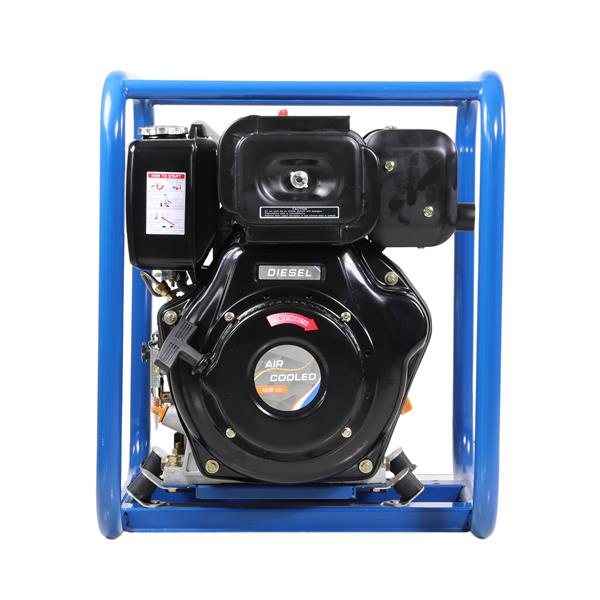

Diesel Water Pump – HL100C
HAILIN diesel clean water pumps are powered by reliabe, strong-built air cooled diesel engines. Suitable for various applications like dewatering, agricultral, pool water removal, irrigation, etc. High quality aluminum pump housing and cast iron impeller extends the life of the pump. Carbon-ceramic mechanical seal designed for long and superior abrasion resistance. Self-priming design (Require initial priming to operate).
| HL100C | HL100CE | HL100CL | HL100CLE |
| 5.5L Fuel Tank, Manual Start | 5.5L Fuel Tank, Electric Start | 12.5L Fuel Tank, Manual Start | 12.5L Fuel Tank, Electric Start |
Request for a quotation!
Contact us for a free quotation or request additional information.
| Model | HL100C |
| Fuel Tank | 5.5 L |
| Start System | Recoil Start |
| Type | Self-priming (initial priming needed), centrifugal pump |
| Inlet | 4" (100mm) |
| Outlet | 4" (100mm) |
| Total Head | 27 m |
| Suction Head | 8 m |
| Discharge Volume | 1600 L/min |
| Pump Body | Aluminium Alloy |
| Impeller | Cast Iron |
| Mechanical Seal | Carbon-Ceramic |
| Engine Type | Forced air cooled, 4-stroke diesel engine |
| Engine Model | HL186FA |
| Displacement | 418 cc |
| Rated Output | 6.3kW (8.6hp) @3600rpm |
| Fuel Consumption Rate | 318ml/kW.h @3600rpm |
| Dry Weight | 67.5 kg |
| Dimension | 650x485x615 mm |
