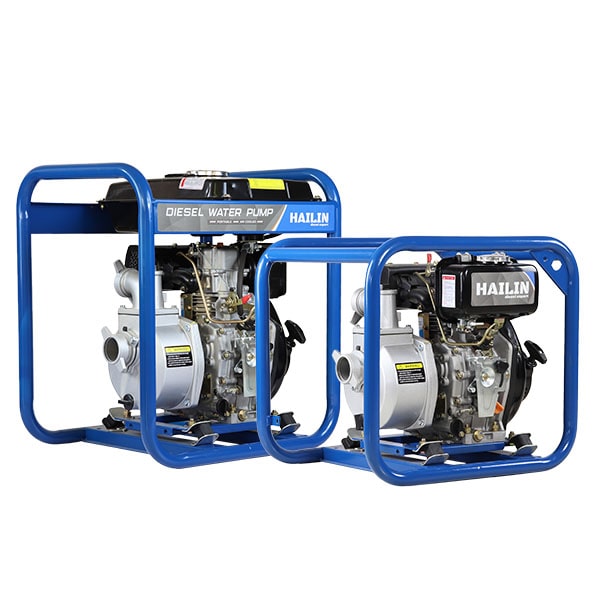

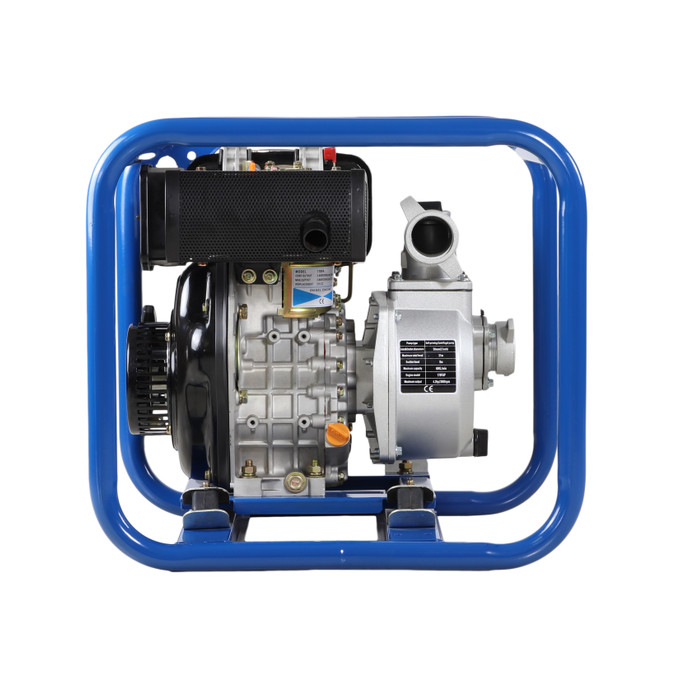

Diesel Water Pump – HL50C

HAILIN diesel clean water pumps are powered by reliabe, strong-built air cooled diesel engines. Suitable for various applications like dewatering, agricultral, pool water removal, irrigation, etc. High quality aluminum pump housing and cast iron impeller extends the life of the pump. Carbon-ceramic mechanical seal designed for long and superior abrasion resistance. Self-priming design (Require initial priming to operate).

HL50CHL50CEHL50CLHL50CLE
2.5L Fuel Tank, Manual Start2.5L Fuel Tank, Electric Start12.5L Fuel Tank, Manual Start12.5L Fuel Tank, Electric Start

Request for a quotation!

Contact us for a free quotation or request additional information.

ModelHL50C
Fuel Tank2.5 L
Start SystemRecoil Start
TypeSelf-priming (initial priming needed), centrifugal pump
Inlet2" (50mm)
Outlet2" (50mm)
Total Head31 m
Suction Head8 m
Discharge Volume600 L/min
Pump BodyAluminium Alloy
ImpellerCast Iron
Mechanical SealCarbon-Ceramic
Engine TypeForced air cooled, 4-stroke diesel engine
Engine ModelHL170FA
Displacement219 cc
Rated Output2.8kW (3.8hp) @3600rpm
Fuel Consumption Rate347ml/kW.h @3600rpm
Dry Weight40 kg
Dimension560x440x510 mm
